Medium-Duty One-Handed Bar Clamps


QUICK-GRIP® Medium-Duty One-Handed Bar Clamps

Click a thumbnail to view a larger image

Medium-Duty One-Handed Bar Clamps Features:

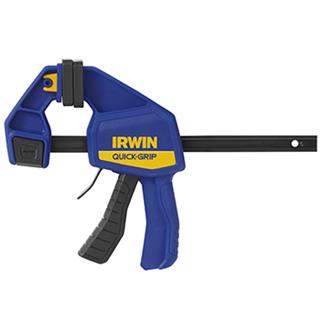

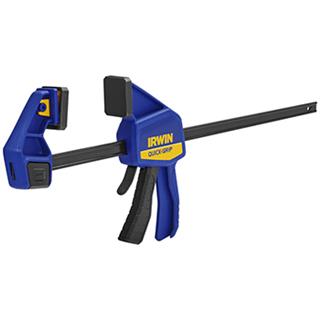

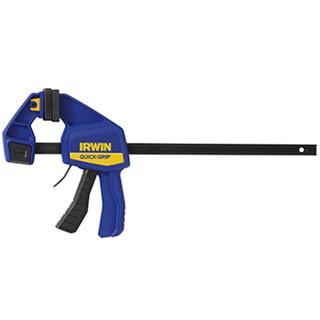

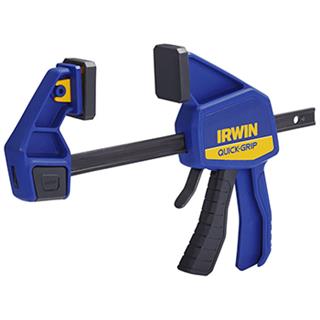

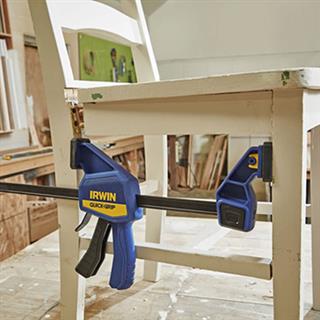

The IRWIN® QUICK-GRIP® Medium-Duty One-Handed Bar Clamp evenly distributes up to 136kg (300 lbs) of sustained clamping force. Ideal for temporary hold-down, quick clamping applications
  • NEW QUICK-CHANGE™ BUTTON
    Provides easy removal of jaws for accessory installation or conversion to a spreader
  • NEW REMOVABLE SWIVEL JAWS & NONMARRING PADS
    Full-faced pads deliver even distribution of clamping force
  • ONE-HANDED QUICK-RELEASE TRIGGER
    New grip and trigger design provides simple, one-handed operation
  • HEAT-TREATED, BLACK OXIDE CARBON STEEL I-BEAM
    Support added pressure with less bend and flex for superior durability
BrochureBrochure
-Email a friend
-Printer Friendly Page
-Safety Warnings

NOTE: Not all products are currently listed on our website. If you don't see the specific product you are looking for, please contact our Customer Service Department for assistance

Item #DescriptionSpreading CapacityThroat DepthEAN
T506QCEL7150mm (6") Medium-Duty Bar Clamp/Spreader200mm - 340mm (7-7/8" - 13-3/8")81 mm (3-3/16")5706915000061
T512QCEL7300mm (12") Medium-Duty Bar Clamp/Spreader200mm - 590mm (7-7/8" - 19-3/8")81 mm (3-3/16")5706915000078
T518QCEL7450mm (18") Medium-Duty Bar Clamp/Spreader200mm - 645mm (7-7/8" - 25-3/8")81 mm (3-3/16")5706915000085
T524QCEL7600mm (24") Medium-Duty Bar Clamp/Spreader00mm - 795mm (7-7/8" - 31-3/8")81 mm (3-3/16")5706915000092
T536QCEL7900mm (36") Medium-Duty Bar Clamp/Spreader200mm - 1120mm (7-7/8" - 43-3/8")81 mm (3-3/16")5706915000108
